Power Post

This Product is Currently Unavailable

SKU:
ESB1
Add to Custom Catalog

Product Description




Power post - diagram 3/8"
Power post diagram 5/16"

Pacer offers a wide range of power post solutions designed to meet the demands of various marine electrical applications. Tin-plated copper busbars provide excellent conductivity and minimize voltage drop, helping maintain reliable power delivery in high-amperage circuits such as engine starting and anchor windlass systems. Durable construction, stainless steel hardware, and flexible mounting options ensure secure, dependable cable connections. Connect high-amperage cables with confidence.



Characteristics:

  • Flexible Mounting Hole Provisions includes #10 (M5) holes and ¼” (M6) holes
  • Stainless steel self-locking hardware ensures long-term reliability and ease of installation.
  • Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop

Features:

  • Robust Designs With Insert Molded Stud Connections also include cable caps with single posts and integrated covers with dual posts

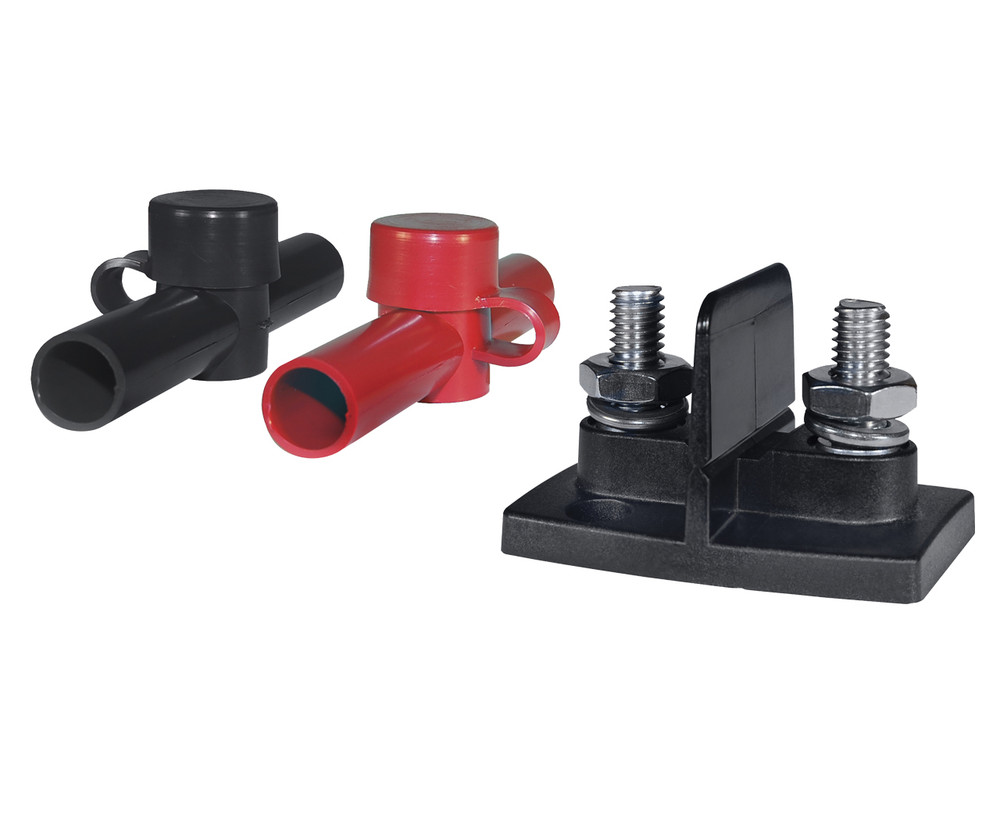

  • Outboard Motor Cable Connections made simple with dual power posts, with an M8/M10 variation ensuring the correct voltages polities are matched
  • FLEX System Height Compatible allows easy busbar connection to other FLEX system components

Maximum Voltage 80 VDC
Maximum Amperage Based on Attached Cables
Mounting Screw Max Torque 50 in-lbs (5.5 N-m)
M10 Nut Maximum Torque 140 in-lbs (15.8 N-m)
Base Material Nylon 6 30% GF
Operating Ambient Temperature Range -40°C to 125°C
Max Storage/Shipping Temperatures -50°C to 140°C
Busbar Material (power post plus) Tin-Plated Copper
