Terminal Kits

What are Terminal Kits?

Terminal kits are a collection of terminals of various sizes and styles that you need in one convenient package. You'll find these kits contain the electrical connector types to handle many industrial applications. All of these crimp connectors are in a portable easy to use carrying case. Finding the electrical connectors that you need has never been easier than it is with terminal kits. Pacer terminal kits offer a wide range of terminals and sizes including rings terminals and butt splices. The point of terminal kits is to make finding what you need easier while in the field, on a job site, in the marina, in your private garage, or even out on the water. By offering you the terminals you need in a single, portable package, its one less thing to worry about.

"The point of terminal kits is to make finding what you need easier while in the field, on a job site, in the marina, in your private garage, or even out on the water."

Where are terminal kits implemented?

Terminal Kits are implemented in multiple industries

Terminal kits are implemented in field service applications where a multitude of terminals are needed to be on hand. This makes them perfect for both new installations as well as when replacing older installations. They carry several types of crimp connectors. So if you are dealing with faded terminals, cracked terminals, or otherwise damaged terminals, then terminal kits are the ideal solution. You will need to use the proper tools when using terminal kits. Since we have now covered the basics of implementing terminal kits, let us shift focus to what types of terminals are available in these kits.

What type of terminals are available in terminal kits?

As stated above, Pacer terminal kits come with both ring terminals as well as buttsplices. The ring terminals available include stud sizes #8, #10, 1/4", 5/16", and 3/8". These ring terminals will cover the vast majority of applications you will run into on a daily basis. The butt splices in our terminal kits come ready to handle 22 AWG - 18 AWG, 16 AWG - 14 AWG, or 12 AWG - 10 AWG wires. So, you can see that our terminal kits come with all the terminals you can need to get the most common applications completed quickly. With these electrical wire connectors handy you are sure to handle projects quicker.

#8 Ring Terminal

#10 Ring Terminal

1/4" Ring Terminal

5/16" Ring Terminal

3/8" Ring Terminal

What types of insulations are available?

When it comes to Pacer terminal kits, they are available in either nylon or heat shrink insulation to handle most jobs while offering high levels of protection. We could offer vinyl insulation or even non-insulated, but those insulations do not offer the high levels of protection that can get with nylon and heat shrink insulation. All out heat shrink insulation terminals carry an internal epoxy lining that melts to create an environmental seal which will protect connections against corrosion and moisture. Our terminal kits also come with a reusable and durable case. That way when you use the wire connectors, you can reuse the case.

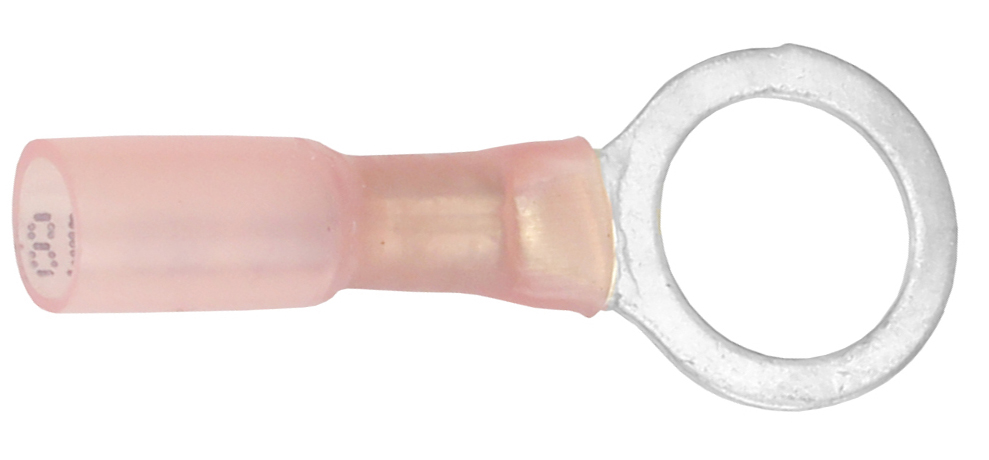

Heat Shrink

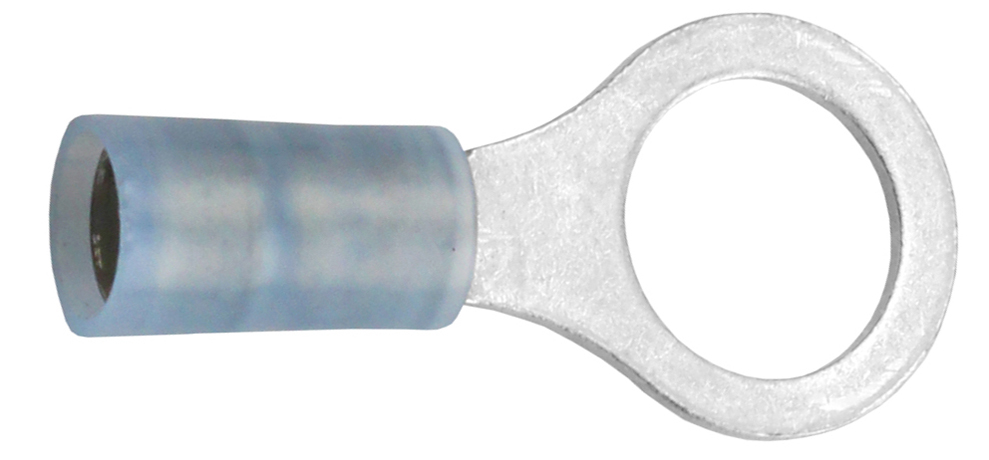

Nylon

Is the case reusable?

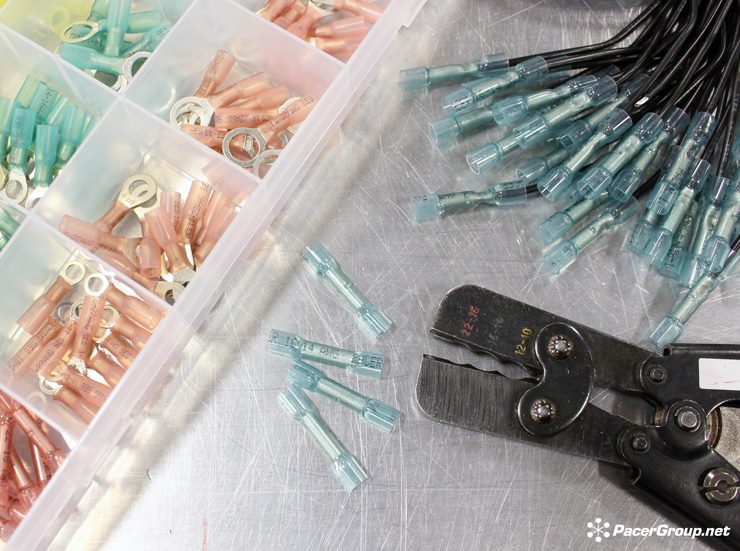

Yes, as an added bonus these kits come with a durable, portable, reusable plastic case. The case is ideal for field service as it protects the terminals and keeps them separated by their terminal type and size. The case can be refilled or reused for another purpose. It is useful for separating small parts just like terminals. Some of our customers use the cases for other applications once the terminals have been used up. The bottom line is that the case itself is durable and reusable.

What tools work with these terminals?

The type of tools to use with ring terminals and buttsplices is actually the same type, that being a crimping tool. The VTTR50 is a solid choice for both the nylon insulation and the heat shrink insulation and works on both ring terminals as well as butt splices. Its ratcheting action makes it the best choice as it is ideal for use in the field, garage, or any location. Another solid choice is the VT3120CT. This tool also offers a ratcheting action that cannot be matched. These tools are designed for use on production lines, in repair shops, or anywhere ring terminals or butt splices need to be crimped.

VTTR50

VT3120CT

Why choose Pacer?

Pacer has over forty years in the wire & cable and marine industries. We have used that time to build a reputation for solutions. Some of the world’s top boat builders turn to Pacer for their electrical needs and that includes terminal kits. Pacer is a trusted manufacturer located in the U.S.A. When you Pacer on your products, you know that you have quality.

*This page was updated on 2/08/2023*
