Power Post Plus 8 Screws
This Product is Currently Unavailable
- SKU:
- ESB1-
Related Products
Product Description
Pacer stocks a wide variety of power post solutions. Corroded buses can rob precious voltage from a circuit, which can lead to a range of issues. In starter and anchor windlass circuits where hundreds of amps flow, this could mean a significant difference in cranking/lifting capability. Connect all high-amperage cables securely. Selecting the correct power post for our application is not an easy task. Contact a Pacer expert today with any questions that you may have.
Characteristics:

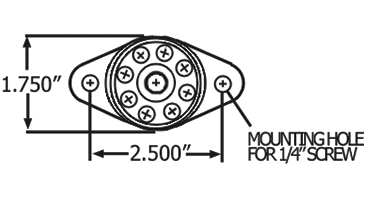

- Flexible Mounting Hole Provisions includes #10 (M5) holes and ¼” (M6) holes
- Stainless steel self-locking hardware ensures long-term reliability and ease of installation.
- Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop
Features:
- Robust Designs With Insert Molded Stud Connections also include cable caps with single posts and integrated covers with dual posts
- Outboard Motor Cable Connections made simple with dual power posts, with an M8/M10 variation ensuring the correct voltages polities are matched
- FLEX System Height Compatible allows easy busbar connection to other FLEX system components
| Maximum Voltage | 80 VDC |
| Maximum Amperage | Based on Attached Cables |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| M10 Nut Maximum Torque | 140 in-lbs (15.8 N-m) |
| Base Material | Nylon 6 30% GF |
| Operating Ambient Temperature Range | -40°C to 125°C |
| Max Storage/Shipping Temperatures | -50°C to 140°C |
| Busbar Material (power post plus) | Tin-Plated Copper |
