Mini Power Post

$16.200
SKU:
ESB1-1/4B
Grand Total:
16.2
Adding to cart… The item has been added
Add to Custom Catalog

Product Description

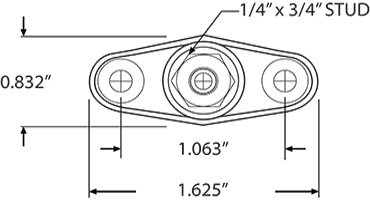

Mini power post - diagram 2

Pacer’s power post solutions provide secure, reliable connections for high-amperage electrical circuits. Tin-plated copper busbars deliver excellent conductivity with minimal voltage drop, while insert-molded stud connections and stainless steel hardware ensure dependable performance in demanding marine environments. With multiple mounting options and configurations, Pacer power posts simplify cable connections and power distribution across a variety of applications.


Characteristics:

  • Flexible Mounting Hole Provisions includes #10 (M5) holes and ¼” (M6) holes
  • Stainless steel self-locking hardware ensures long-term reliability and ease of installation.
  • Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop

Features:

  • Robust Designs With Insert Molded Stud Connections also include cable caps with single posts and integrated covers with dual posts
  • Outboard Motor Cable Connections made simple with dual power posts, with an M8/M10 variation ensuring the correct voltages polities are matched
  • FLEX System Height Compatible allows easy busbar connection to other FLEX system components

Maximum Voltage 80 VDC
Maximum Amperage Based on Attached Cables
Mounting Screw Max Torque 50 in-lbs (5.5 N-m)
M10 Nut Maximum Torque 140 in-lbs (15.8 N-m)
Base Material Nylon 6 30% GF
Operating Ambient Temperature Range -40°C to 125°C
Max Storage/Shipping Temperatures -50°C to 140°C
Busbar Material (power post plus) Tin-Plated Copper
