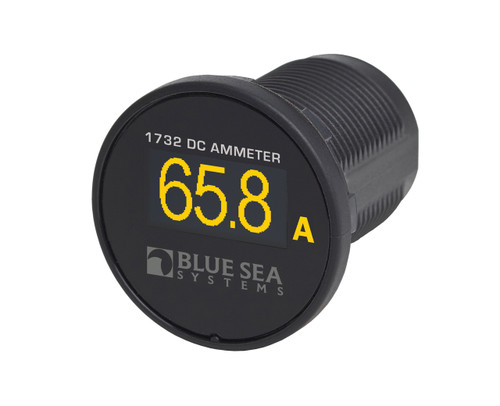

Mini OLED Ammeter

$86.090
SKU:
EMD-1732
Grand Total:
86.09

Frequently Bought Together

Please choose Options for all selected Products

Product Description




Meter Dimensions See Diagram
Meter Ammeter
Nominal Voltage 12V DC
24V DC
Resolution 0.1A
Intermittent Rating 110A
Cranking Rating 30 sec 175A
Cut Out Dimensions 1-1/8"  (28.58 mm)
Accuracy ± 2%
Input Voltage Range 8-36V DC
Operating Current 15mA




Monitoring your electrical system is a must, especially when you will be away from shore, out on the water. Using meters allows you to safely and efficiently monitor your system. Pacer's Mini OLED Ammeter is built to measure essential electrical system parameters. It then displays the information on a waterproof, bright, and daylight readable OLED screen. The Mini OLED Ammeter is made to be easy to install while handling some of the toughest marine conditions out there. Choosing the correct OLED meter for your application is no easy task. Contact a Pacer expert with any questions that you have and let us help.

 Features:

  • Compact size enables mounting in any location
  • Protected from reverse polarity
  • Mounts in a common 1-1/8" hole
  • Convenient monitoring of amperage
  • Monitors -100A to 100A DC
  • Negative or Positive side wiring
