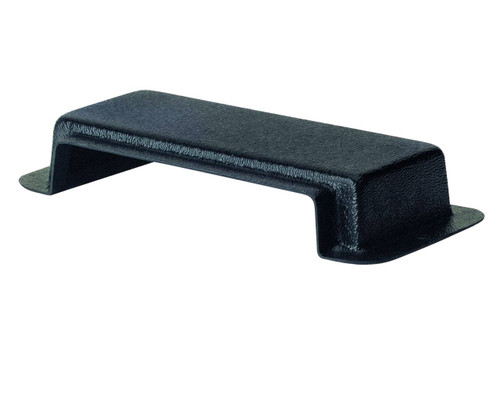

Dual Row Bus Bar Cover

This Product is Currently Unavailable

SKU:
ED
Add to Custom Catalog

Product Description


Dual Row Bus Bar - diagram EDB10
Dual Row Bus Bar - diagram EDB20

Pacer's dual-row bus bar covers provide reliable protection for both electrical systems and operators by shielding exposed conductive surfaces from accidental contact and potential short circuits. Designed specifically for use with dual-row bus bars, these covers combine durable construction with thoughtful features that make installation, inspection, and maintenance easier. The transparent polycarbonate cover allows torque markings to remain visible without removal, while convenient break-away tabs provide access to cables and terminals when needed. Insert-molded bus bars and studs enhance overall strength and durability, helping ensure a secure, dependable installation in demanding marine environments. With corrosion-resistant tin-plated copper bus bars, stainless steel self-locking hardware, and flexible mounting options, Pacer's dual-row bus bar covers deliver dependable electrical performance and long-term protection.



Characteristics:

  • Flexible mounting screw sizing to accept #10 (M5) or ¼” (M6) screws
  • Stainless Steel Self Locking Hardware Ensures long-term reliability and ease of installation
  • Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop

Features:

  • Includes a transparent cover that allows inspection of torque markings without removal and provides break-away tabs for cable/terminal access while ensuring maximum protection against inadvertent shorts to adjacent parts.
  • Insert molded busbar and studs to maximize the strength and durability of finished installation

Maximum Voltage 80 VDC
M8 Nut Recommended Torque 100 in-lbs (11.3 N-m)
M10 Nut Recommended Torque 120 in-lbs (13.6 N-m)
Cover Material Clear Polycarbonate
Base Material Nylon 6 30% GF
Operating Ambient Temperature Range -40°C to 125°C
Max Storage/Shipping Temperatures -50°C to 140°C
Busbar Material (power post plus) Tin-Plated Copper
Mounting Holes
4x #10 (M5) & 2x ¼”(M6)
