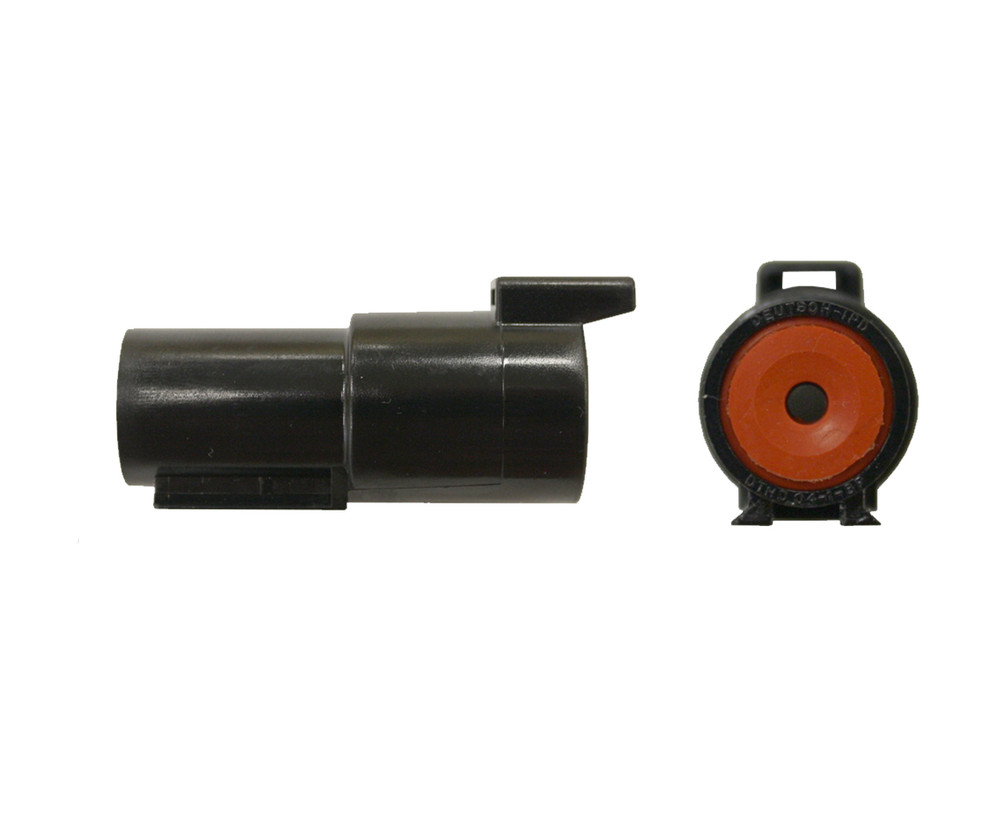

DTHD Single Circuit (6 AWG)

Due to supplier issues, this product is currently unavailable. We will be updating this page when the availability date changes.

SKU:
TDTHD0

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

Product Description


Contact Size
Wire Size 6 AWG
Max Rated Amps 100
Operating Voltage (VDC) 250
Operating Temperature -55°C to 125°C

Compliances:

  • Ingress Protection (IP) Level: IP67
  • EU RoHS/ELV

Characteristics:

  • Redundant Silicone Seals
  • Contacts are hand insertable

Deutsch is known for their environmentally sealed connectors throughout the marine industry. They offer field serviceability as well as superior vibration and shock resistance. For heavy-duty applications, Pacer Group now carries the DTHD line of connectors. These connectors are designed specifically for heavy-duty applications. The 6 AWG DTHD single circuit connector is for use with 6 AWG wire.

How are they used? Well, DTHD single circuit connectors are simple to install. Start by cutting and stripping the wires you need connected. Now, apply the proper terminal to the ends of the wires. Insert them into the corresponding receptacle or plug. After both sides are complete, plug them together. Now you have a compact, field serviceable, environmentally sealed connection. Have questions about these or any of our connectors? Contact a Pacer Group expert today.

Features:

  • Environmentally sealed disconnectable power wire splicing
  • 60-100 Amps at 125°C
  • 10-6 AWG wires
  • Easy to install
  • Field serviceable

Applications:

  • Wire to wire applications
  • Enclosed connectors offer field proven reliability and rugged quality
