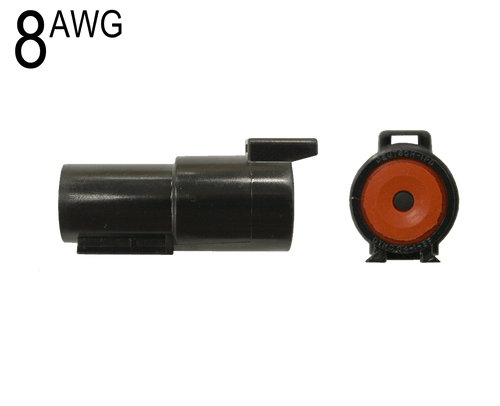

DTHD Single Circuit (8 AWG)

Due to supplier issues, this product is currently unavailable. We will be updating this page when the availability date changes.

SKU:
TDTHD

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

Product Description


Contact Size
Wire Size 10-8 AWG
Max Rated Amps 60
Operating Voltage (VDC) 250
Operating Temperature -55°C to 125°C

Compliances:

  • Ingress Protection (IP) Level: IP67
  • EU RoHS/ELV

Characteristics:

  • Redundant Silicone Seals
  • Contacts are hand insertable

Deutsch is known throughout the marine industry for their environmentally sealed connectors. They offer superior vibration and shock resistance as well as field serviceability. For heavy duty applications, Pacer Group carries the DTHD line of electrical connectors. These connectors are single circuit connectors designed specifically for heavy duty applications. The 8 AWG DTHD single circuit connector is for use with 10-8 AWG wires.

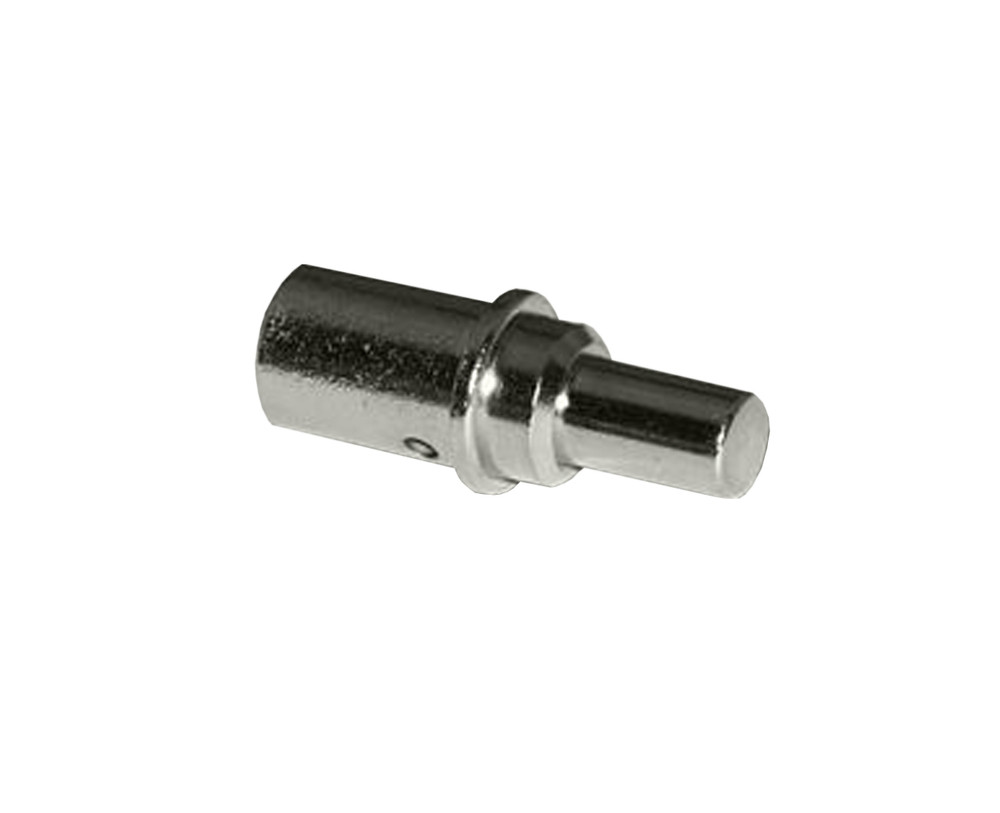

How do you use them? DTHD single circuit connectors are easy to install. Simply cut and strip the wires you need connected. Next, apply the proper machined terminal to the ends of the wires and insert them into the corresponding receptacle or plug. Once both sides are complete, plug them together. Now have a compact, field serviceable, environmentally sealed connection. Have questions about DTHD connectors? We're here to help. Contact a Pacer Group expert today.

Features:

  • Environmentally sealed disconnectable power wire splicing
  • 60-100 Amps at 125°C
  • 10-6 AWG wires
  • Easy to install
  • Field serviceable

Applications:

  • Wire to wire applications
  • Enclosed connectors offer field proven reliability and rugged quality
