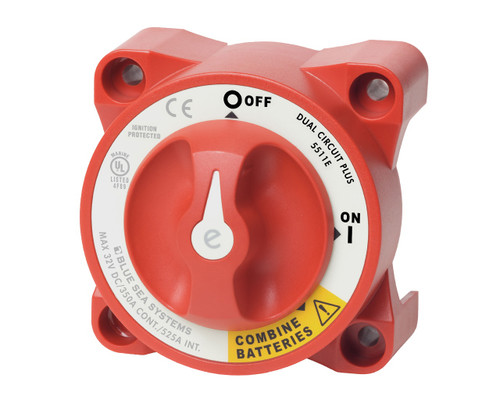

Blue Sea Battery Switch, E-Series, Dual Circuit Plus

$85.270

SKU:

EBS-5511E

Product Description

Color	Red
Switch Positions	3
Maximum Voltage	32 V DC
Continuous Rating	350 A
Intermittent Rating	525 A (5 min)
Battery Inputs	2
Dimensions	W=2.82", H=2.82", D=3.07"

Blues Sea Systems compact high-amperage switches are vapor/ignition protected and UL listed. They are designed to increase safety on a marine vessel by isolating the battery in case of fire. A battery switch such as this is required to be on boats that have more than 800 cranking amps. The E-Series are 350 Amp continuous rated for outboards, small gasoline or diesel engines. These switches carry a 525 Amps (for approximately 5 mins.) intermittent rating. All Pacer battery switches are built to handle the toughest marine conditions possible which is why you will find them on just about every larger size boat.

Characteristics:

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22 mm) Stud length accepts multiple cable terminals
Mounting holes: 1/4" (M6) Screw

Compliances:

UL1107
UL 1500
CE
IP 66
ISO 8846
SAE J1171

Features:

350 Amps continuous rating for outboards, small gasoline or diesel engines
Studs accepts 3/8” (M10) ring terminals
Ignition protected
Tin-plated copper studs for maximum conductivity & corrosion resistance
7/8” (22 mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Fits most Perko and Guest low amperage battery switch hole patterns
Case design allows surface, rear, or front panel mounting options
Tactile indicator conveys knob position by feel
Selector-type battery switches with a "make before break" contact design allows switching between battery banks without power interruption
