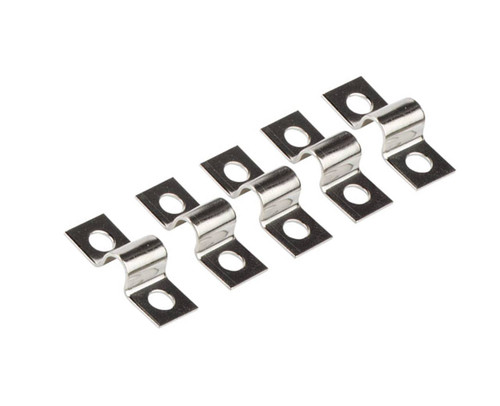

Ring Style Terminal Block Jumpers

$12.143 - $974.359
SKU:
ETBJ
Grand Total:
12.143
Adding to cart… The item has been added
Add to Custom Catalog

Product Description


Pacer’s enclosed terminal block jumpers provide a convenient, reliable way to bridge circuits and distribute power between terminal block connections. Designed for use with Pacer’s 20, 30, and 65-amp terminal blocks, they simplify wiring while maintaining secure electrical connections.

Featuring tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials, they are built to withstand demanding marine environments. Rated for systems up to 240 VAC/VDC, these jumpers offer dependable performance across a wide range of electrical applications. RoHS compliant and CE marked, they provide a durable solution for flexible circuit connections.


Characteristics:

  • Screw Terminal Connections: Provide one input and one output screw connected to separate copper alloy bus bars for each matching connection pair.
  • 20, 30, or 65 Amp sizes with compatible jumpers for bridging circuits as needed.
  • 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
  • Marine-grade materials ensure long-lasting reliability in harsh environmental applications.

Features:

  • Protects ring terminal splices from shorting to adjacent circuits or ground with high insulation walls.
  • Anti-rotation ribs on the conductor strip reduce the chance of wire termination rotation if strain relief distances are too long.
  • Bulletproof construction: High temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
  • Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.


Max Operational Voltage 240 VAC/VDC
Maximum Continuous Current 20, 30, or 65 A
Dielectric Strength 2000VAC
Max Operating Temperature 100°C / 212°F
Min Operating Temperature
-40°C / -40°F
Mounting Screw Size #8 (M4) for 20 A
#10 (M5) for 30 & 65 A
Terminal Strip Conductor Material Tin Plated Copper Alloy
Hardware Stud Material Stainless Steel
RoHS compliant? Yes
CE Marked? Yes
