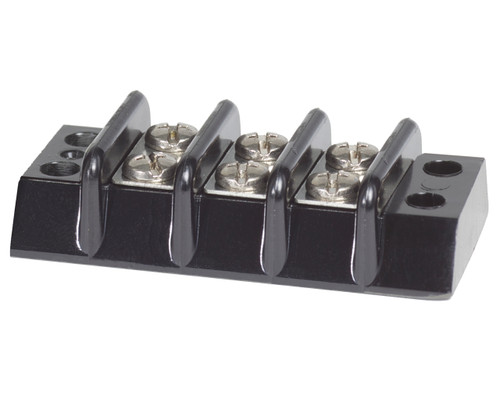

Terminal Blocks, 30 Amp

$6.290 - $237.500
SKU:
E30TB
Grand Total:
6.29
Adding to cart… The item has been added
Add to Custom Catalog

Product Description


Terminal Blocks 30A - diagram

Pacer’s 30-amp terminal blocks feature screw-terminal connections with separate tin-plated copper alloy bus bars for secure, reliable wire termination. High insulation walls help prevent accidental shorts between adjacent circuits or ground, while anti-rotation ribs help maintain stable connections. Constructed with high-temperature insulation materials and stainless steel hardware, they are designed to withstand demanding marine environments.

Rated for up to 240 VAC/VDC, they support a wide range of electrical systems and accept compatible jumpers for bridging circuits as needed. With a maximum continuous current rating of 30 amps, these terminal blocks provide a durable solution for organized, dependable electrical connections.



Characteristics:

  • Screw Terminal Connections: Provide one input and one output screw connected to separate copper alloy bus bars for each matching connection pair.
  • 30 Amp sizes with compatible jumpers for bridging circuits as needed.
  • 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
  • Marine-grade materials ensure long-lasting reliability in harsh environmental applications.

Features:

  • Protects ring terminal splices from shorting to adjacent circuits or ground with high insulation walls.
  • Anti-rotation ribs on the conductor strip reduce the chance of wire termination rotation if strain relief distances are too long.
  • Bulletproof construction: High temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
  • Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.


Max Operational Voltage 240 VAC/VDC
Maximum Continuous Current 30 A
Dielectric Strength 2000VAC
Max Operating Temperature 100°C / 212°F
Min Operating Temperature
-40°C / -40°F
Mounting Screw Size #10 (M5)
Terminal Strip Conductor Material Tin Plated Copper Alloy
Hardware Stud Material Stainless Steel
RoHS compliant? Yes
CE Marked? Yes
