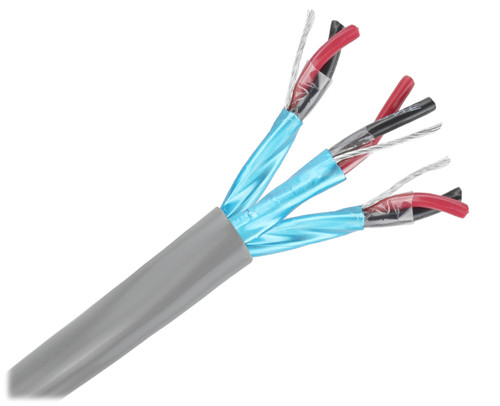

Power Limited Tray Cable, Individually Shielded Pairs, 3 Pairs

$2.220
SKU:
M18/3PRIF
Minimum Purchase:
25 units
Grand Total:
55.50000000000001

Frequently Bought Together

Please choose Options for all selected Products

Product Description

Number of Pairs 3
Conductor Stranding 16/30
Nom. Cap pF/ft*  (A) 50.5
Nom. Cap pF/ft*  (B) 91.0
Nom. Insulation Thickness 0.016
Nom. Jacket Thickness 0.053
Nom. O.D. 0.437



 Compliances:

  • RoHS compliant directive 2011/65/EU
  • NEC Art. 725 (UL 105°C, 300V)
  • UL style 2464
  • CSA CMG

Characteristics:

  • Voltage Rating: 300V
  • Temp. Rating: -20°C to 80°C




*Nom. Capacitance:  A-Between Conductors     B-Between Conductor and Shield


Power Limited Tray Cable is utilized in a multitude of applications. As the title suggests, this style of cable is used in power-limited circuits. They are often used in intercom circuits, computer interconnections, and burglar alarms.

What exactly are tray cables? The concept started from the idea of protecting smaller cables commonly found in an industrial environment. You see, smaller cables were being placed beneath larger ones and were unable to handle the stress. This, in conjunction with the rough environment, leads to failures in smaller communication and power cables. In order to resolve this issue trays were installed, usually along the ceiling. These trays carried the smaller, lighter cables. The term Tray Cable means that the cables are installed in cable trays. See what I did there? These cables are designed to meet the specifications of the NEC (National Electric Code). This is why you will find them in factories, wind turbines, and control systems. Selecting the correct type of cable for your job isn't always an easy task. Contact a Pacer Group expert with any questions that you have.

Features:

  • Finely Stranded, Tinned copper conductors
  • Provides superior temperature chacteristics, shielded with a robust, highly durable, and sunlight resistant jacket
  • 100% Aluminum polyester foil with a stranded tinned copper drain wire with cables that have individually shielded pairs
  • Color coded PVC Insulation
  • Grey PVC jacket

Applications:

  • Burglar Alarms, Power Limited Circuits, Intercom Systems, Computer Interconnects
