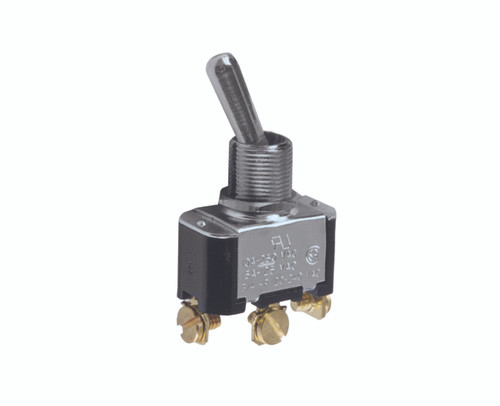

Metal Bat Toggle Switch, Single Pole

$8.000 - $12.000

SKU:

ES-B2

Product Description

Switch Function	Description
ON - OFF	Single Pole, Single Throw
ON - ON	Single Pole, Double Throw
ON - OFF - ON	Single Pole, Double Throw (Center Off)
ON - ON - ON	Single Pole, Triple Throw

Compliances:

Ratings:

15 Amp 125-VAC
10 Amp 250-VAC, 3/4"
HP 125-250-VAC

Characteristics:

Base Material: Phenolic
Actuator (Bat): Brass/Nickel Plated
Bushing: Brass/Nickel Plated
Dielectric Strength: 100 V Min.
Insulation Resistance: 100 Mega Ohm
Terminal: #6-32NC-2
Bushing Length: 0.468"
Panel Mounting Hole: 1/2" Diameter

A Bat toggle switch is an electrical switch that is named for its shaped handle. This handle is designed for easy actuation. Frequently, they are covered with a protective boot for added durability. Commonly, bat toggle switches are built to be used in low-voltage, high amperage applications. Bat toggle switches are the ideal choice when you need to add a simple power switch on your boat or vessel. To make them even better, bat toggle switches are also available in more options in order to handle a variety of applications. All the bat toggle switches that Pacer offers are rated at 15A/120VAC. Choosing the proper bat toggle switch for your application is not an easy task. Contact a Pacer expert today with any questions that you may have.
