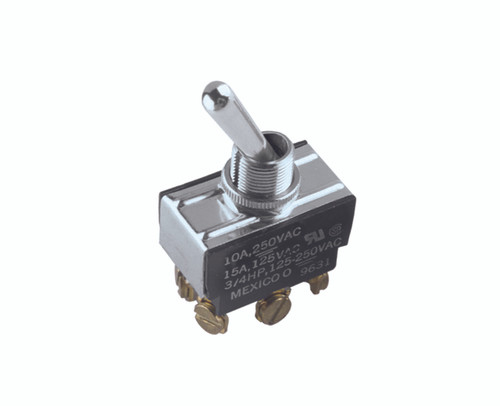

Metal Bat Toggle Switch, Double Pole

Metal Bat Toggle Switch, Double Pole

$7.270 - $8.880
SKU:
ES-B2G
Grand Total:
7.27

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

    Related Products

Product Description


Switch Function  Description
ON - OFF Double Pole, Single Throw
ON - ON Double Pole, Double Throw
ON - OFF - ON Double Pole, Double Throw (Center Off)

Compliances:

  • UL
  • CSA
  • VDE

 Ratings:

  • 15 Amp 125-VAC
  • 10 Amp 250-VAC, 3/4"
  • HP 125-250-VAC

Characteristics:

  • Base Material: Phenolic
  • Actuator (Bat): Brass/Nickel Plated
  • Bushing: Brass/Nickel Plated
  • Dielectric Strength:  100 V Min.
  • Insulation Resistance: 100 Mega Ohm
  • Terminal: #6-32NC-2
  • Bushing Length: 0.468"
  • Panel Mounting Hole: 1/2" Diameter

Metal Bat Toggle switches

Features:

  • Screw Terminal Connection
  • Brass/Nickel Plated for durability

Applications:

  • Suitable for both AC and low voltage DC applications
  • Commonly used in Marine, Food Service, Generator, Industrial Controls, and Automation markets
