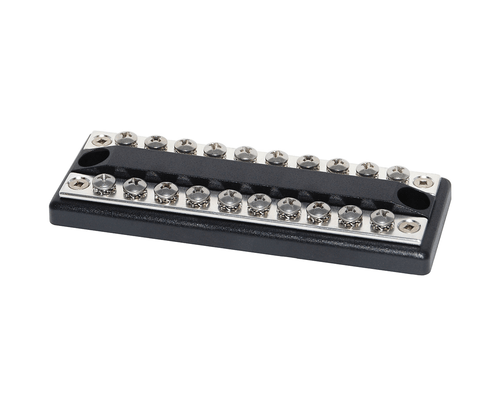

Dual Row Bus Bar
This Product is Currently Unavailable
- SKU:
- EDB
Related Products
Product Description
Pacers dual-row bus bars are designed to combine negative and positive buses on a single block. Effective for use in cramped applications where limited space is an issue. Each Pacer dual bus bar is rated for 100 amps of continuous power and is made from tinned copper. Ideal for handling the toughest marine environments out there. The tin plating these bus bars carry is perfect for resisting corrosion.
Characteristics:
- Flexible mounting screw sizing to accept #10 (M5) or ¼” (M6) screws
- Stainless Steel Self Locking Hardware Ensures long-term reliability and ease of installation
- Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop
Features:
- Includes a transparent cover that allows inspection of torque markings without removal and provides break-away tabs for cable/terminal access while ensuring maximum protection against inadvertent shorts to adjacent parts.
- Insert molded busbar and studs to maximize the strength and durability of finished installation
| Maximum Voltage | 80 VDC |
| M8 Nut Recommended Torque | 100 in-lbs (11.3 N-m) |
| M10 Nut Recommended Torque | 120 in-lbs (13.6 N-m) |
| Cover Material | Clear Polycarbonate |
| Base Material | Nylon 6 30% GF |
| Operating Ambient Temperature Range | -40°C to 125°C |
| Max Storage/Shipping Temperatures | -50°C to 140°C |
| Busbar Material (power post plus) | Tin-Plated Copper |
| Mounting Holes |
4x #10 (M5) & 2x ¼”(M6) |
