Crimpable Closed End Connectors
$3.305 - $96.050
- SKU:
- TJN
Related Products
Product Description

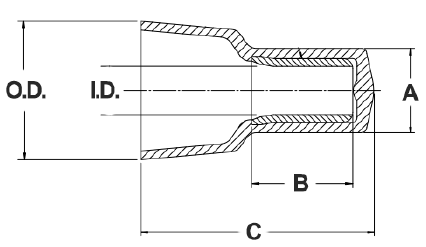

| Min/Max Wire Range | Part Number | O.D. (IN) | I.D. (IN) | A (IN) | B (IN) | C (IN) |
| 2@24 - 3@18 AWG | TJN224-318 | 0.32 | 0.09 | 0.19 | 0.30 | 0.62 |
| 2@18 - 2@16 AWG | TJN218-216 | 0.36 | 0.10 | 0.23 | 0.30 | 0.76 |
| 4@18 - 2@12 AWG | TJN418-212 | 0.45 | 0.15 | 0.28 | 0.28 | 0.90 |
| 3@14 - 4@12 AWG | TJN314-412 | 0.57 | 0.21 | 0.36 | 0.42 | 1.10 |
Closed-end connectors are extremely versatile and can be used for more varying purposes than other types of connectors. They can be used as a splice, wire butt, parallel, or even as a dead-end cap. Each size has a minimum and maximum range of wires it will accept. Designed with durability and longevity in mind, these are the caps the professionals turn to. These are available in nylon insulation only.
