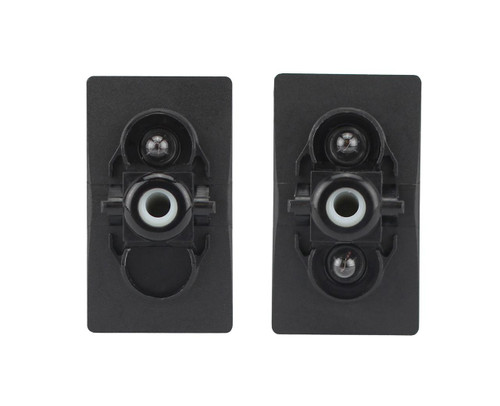

Contura Single Pole Switch

Contura Single Pole Switch

Due to supplier issues, this product is currently unavailable. We will be updating this page when the availability date changes.

SKU:
ES-V

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

    Related Products

Product Description


Switch Function  Description Lamps Volts
ON - OFF Single Pole, Single Throw 1 12-V
ON - ON Single Pole, Double Throw 2 12-V
ON - OFF - ON Single Pole, Double Throw (Center Off) 2 12-V
Lamp Color Clear Incandescent
Single Pole Switches
Part Number Switch Function Lamps/Volts Description
ES-V1DA ON - OFF 1 DEP. / 12-V S.P.S.T.
ES-V4DA ON - ON 2 DEP. / 12-V S.P.D.T.
ES-V6DA ON - OFF - ON 2 DEP. / 12-V S.P.D.T. Center Off
(MOMENTARY)
ES-V2DA (ON) - OFF 1 DEP. / 12-V S.P.S.T.
ES-V3DA ON - (OFF) 1 DEP. / 12-V S.P.S.T.
ES-V5DA ON - (ON) 2 DEP. / 12-V S.P.D.T.
ES-V7DA ON - OFF -(ON) 2 DEP. / 12-V S.P.D.T. Center Off
ES-V8DA (ON) - OFF - (ON) 2 DEP. / 12-V S.P.D.T. Center Off
Double Pole Switches
Part Number Switch Function Lamps/Volts Description
ES-VADA ON - OFF 1 DEP. / 12-V D.P.S.T.
ES-VDDA ON - ON  2 DEP. / 12-V D.P.D.T.
ES-VJDA ON - OFF - ON  2 DEP. / 12-V D.P.D.T. Center Off
(MOMENTARY)
ES-VBDA (ON) - OFF  1 DEP. / 12-V D.P.S.T.
ES-VFDA ON - (ON)  2 DEP. / 12-V D.P.D.T.
ES-VKDA ON - OFF - (ON)  2 DEP. / 12-V D.P.D.T. Center Off
ESVLDA (ON) - OFF - (ON)  2 DEP. / 12-V D.P.D.T. Center Off



Contura V Series rocker switches have a sealed front panel to protect against dust and moisture.  They are known for their versatility and high level of protection. This makes them ideal for use in marine applications where exposure is a primary concern. These general purpose rocker switches are compatible with several actuators styles (sold separately). This way you can get the exact switch that you want without having to compromise. Rocker switches are very common in the marine industry for more than just their durability, but for their ease of installation as well.  Pacer Group rocker switches carry clear incandescent bulbs.

Features:

  • Snap-in mounting
  • Multi-step mounting wings provide a secure fit for panel thickness of 0.032" thru 0.025" in an industry standard 0.830" x 1.450" mounting hole
  • Silver plated butt contact mechanism provides 50 to 100 thousand electrical cycles and a variety of different electrical ratings
  • Single or double pole
  • Removable actuators
  • Maximum sealing protection with dual seals around lamps and rocker stem certified to IP66 & IP68
  • Optional panel seals for additional protection
  • Multiple illumination options

Applications:

  • General purpose switches
  • Marine electrical panels
  • Commonly used in Generators, Industrial Controls, and Automotive Markets

Compliances:

  • Passed a range of environmental, corrosion, temperature, vibration, shock and sealing tests including MIL Std 202F, MIL Std 810C, UL 1500, Iso 8846, IEC 60529, BS 5490 and more
  • UL CSA DEMKO SEMKO NEMKO

Characteristics:

  • Base Material: Polyester
  • Dielectric Strength:  2000V RMS
  • Insulation Resistance: 50 MegOhms
  • Rating: 20A at 12V DC
  • Terminal: 0.250 QC Tabs
  • Mounting Method: Snap-in
  • Mounting Hole Dimensions: 0.83" x 1.45" (21.1mm x 36.8mm)
