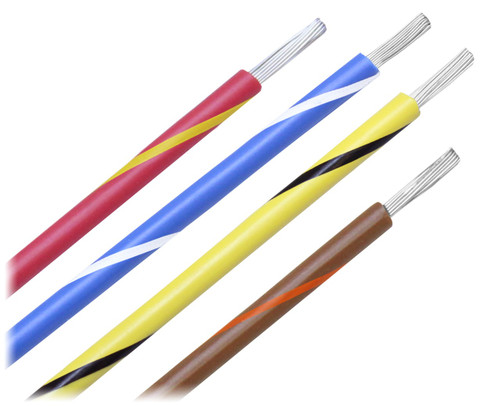

Striped Marine Primary Wire 8

8 Gauge Striped Marine Wire 1000' Spool

$1,194.000 - $1,535.000
Minimum Purchase:
1 unit
Selected Select Color is
Selected Select Stripe Color is
Custom Product: This product is made to order, and cannot be returned or refunded. Due to increased demand, please allow extra time for processing.
Grand Total:
1194
Adding to cart… The item has been added
Add to Custom Catalog

Related Products

Product Description

Striped wire spec sheet



AWG 8
Cond. Stranding 168/.0100
Nom. Ins. Thickness 0.045
Nom. O.D. 0.265
Nom. Circular Mils 16800
Apprx LB/M 80.0

Striped wire is the best choice when a project deals with a large quantity of wires. By using 8 AWG striped marine wire, the identification process becomes much easier. All Pacer's primary marine wire is constructed from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with a PVC insulation. This insulation is built for durability, flexibility and easy installation.

All Pacer primary striped marine wire meets the standards and requirements of UL, ABYC and NMMA. How many combinations of 8 AWG striped marine wire does Pacer offer? Well, when choosing from striped wire, choice is important. By offering a large variety of options, you are sure to get the wire you need. Pacer currently offers 70 possible combinations of 8 AWG striped marine wire. Have a question about striped marine wire? Contact a Pacer expert today.

Applications:

  • Point to point wiring
  • Internal wiring of panels and motors

Characteristics:

  • Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
  • Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
  • Voltage Rating: 600V or 1000V

Compliances:

  • UL Standard 1426 (BC-5W2)
  • UL: AWM 1015/1230, 1028.1231
  • ABYC: E-11.15
  • Coast Guard: 33 CFR part183.401 Subpart 1

Features:

  • Stranded, Tinned copper conductors
  • Highly flexible color coded insulation
  • Annealed Finely Stranded Tinned Copper ASTM b172 Class K
  • Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Print:

  • PACER   E157097 (UL) 8 AWG BC-5W2 105⁰C DRY 75⁰ WET  OR  (RU) AWM 1028/1231/1336 600V  OR 10269 1000V  VW-1  OIL RESISTANT I  OR  c(RU) AWM I A/B 105⁰C 600V FT1

!
