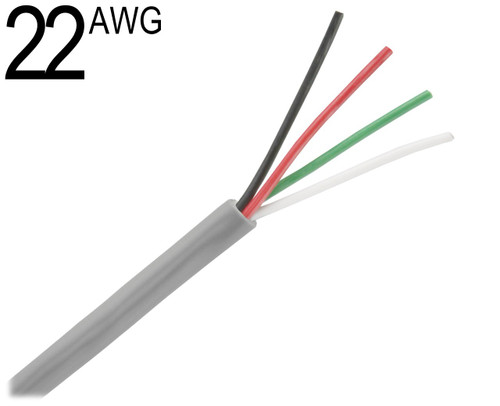

22 AWG Multiconductor Unshielded, 4 conductor

Unshielded Multiconductor Cable, 22 AWG

$0.740 - $3.510
SKU:
M22
Minimum Purchase: 25
Feet
Grand Total:
0.74

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

    Related Products

Product Description

Cable Specifications See Table
AWG  22
Conductor Stranding

2 Conductor @ 7/30
3 Conductor @ 7/30
4 Conductor @ 7/30
5 Conductor @ 7/30
6 Conductor @ 7/30
7 Conductor @ 7/30
8 Conductor @ 7/30
10 Conductor @ 7/30
12 Conductor @ 7/30
15 Conductor @ 7/30
25 Conductor @ 7/30
Nom. Insulation Thickness 2 Conductor @ 0.010
3 Conductor @ 0.010
4 Conductor @ 0.010
5 Conductor @ 0.010
6 Conductor @ 0.010
7 Conductor @ 0.010
8 Conductor @ 0.010
10 Conductor @ 0.010
12 Conductor @ 0.010
15 Conductor @ 0.010
25 Conductor @ 0.010
Nom. Jacket Thickness  2 Conductor @ 0.032
3 Conductor @ 0.032
4 Conductor @ 0.032
5 Conductor @ 0.032
6 Conductor @ 0.032
7 Conductor @ 0.032
8 Conductor @ 0.032
10 Conductor @ 0.032
12 Conductor @ 0.032
15 Conductor @ 0.032
25 Conductor @ 0.032
Nom. O.D.  2 Conductor @ 0.130
3 Conductor @ 0.176
4 Conductor @ 0.189
5 Conductor @ 0.203
6 Conductor @ 0.218
7 Conductor @ 0.218
8 Conductor @ 0.230
10 Conductor @ 0.249
12 Conductor @ 0.276
15 Conductor @ 0.303
25 Conductor @ 0.368



Unshielded multiconductor 22 AWG cables are used in a large number of applications. Many times, you will find them in things like consumer electronics and industrial control equipment. They are also used in signal transmissions in controlled environments. What does that mean? Well, it means that multiconductor cables are used for controlling equipment. By using 22 AWG unshielded multiconductor cable you have the option of selecting between 2 to 25 conductors.

Unshielded multiconductor 22 AWG cables are manufactured from finely stranded tinned copper conductors. These conductors are then insulated with color coded PVC. The now insulated conductors are next covered with a flexible and durable PVC jacket. This keeps the conductors together and offers superior protection at the same time. These cables are manufactured to meet the requirements for UL, CSA, and NEC. Temperatures and voltages are not always the exact same from cable to cable. Call a Pacer expert for specifications on multiconductor cable.


Features:

  • Finely stranded tinned copper conductors
  • Color coded PVC
  • Grey PVC jacket

Compliances:

  • Coast Guard, NMMA, & ABYC Standards
  • NEC Article 800 Type CM (UL: 75°C)
  • UL Style 2464 ( UL: 80°C, 300 V, VW-1 )
  • CSA CMG (CSA: 60°C)
  • CE: Low Voltage Directive (LVD 2006/95/EC)
  • RoHS compliant directive 2011/65/EU
  • Vertical tray cable flame test (70,000 BTU)

Applications:

  • Consumer Electronics
  • Industrial process control equipment
  • Suitable for EIA RS-232 applications
  • Advanced signal transmission in controlled environments
