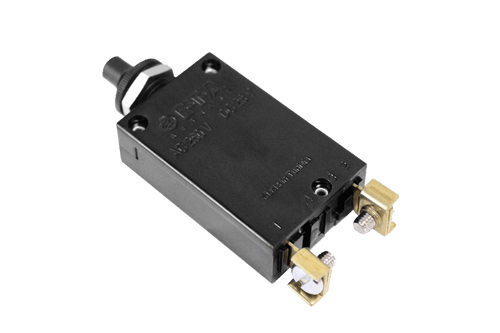

ETS-45 Circuit Breaker

Panel Mount Thermal Breaker, Type 2-5700

$34.500 - $67.000
SKU:
ETS45
Grand Total:
34.5
Add to Custom Catalog

Related Products

Product Description


Breaker Type Thermal
Current Rating  5 - 30 Amps
Max Volt Rating  250-V AC or 28-V DC
Interrupting Capacity 2000 A @ 250 VAC,
2500 A @ 50 VDC
Life 5000 Operations
Terminals  Screw Terminals

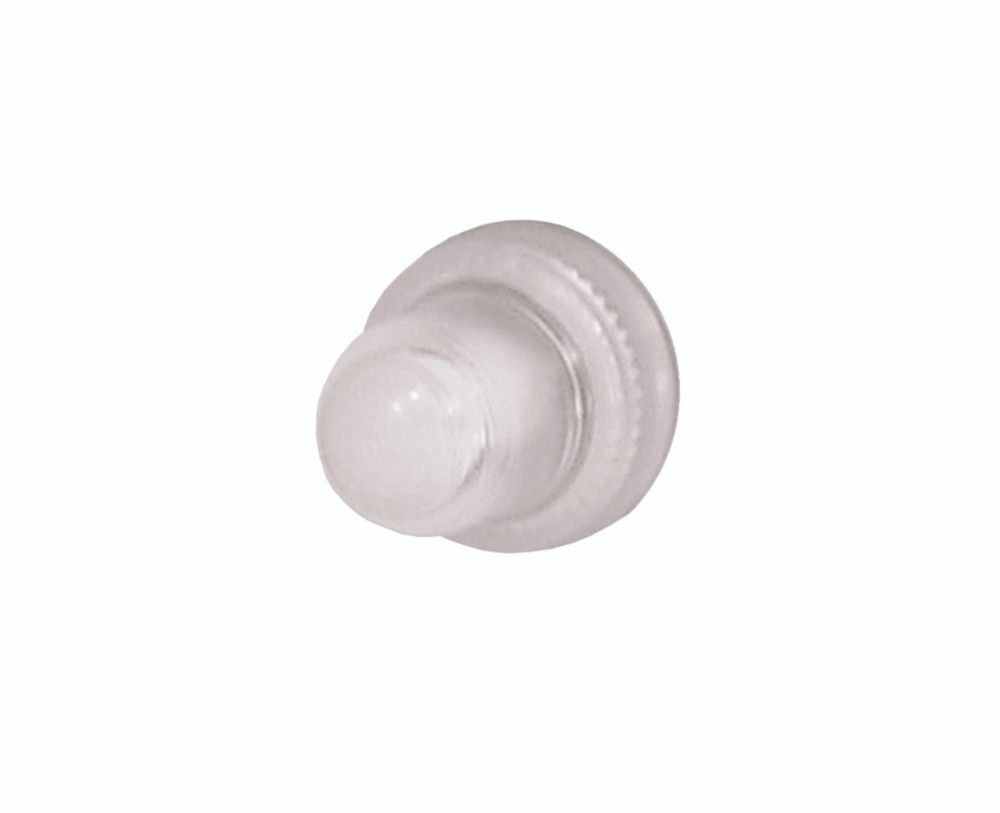

Cap Part Number ES-PBLCAP
Tripping Times in Seconds at 70°F (21°C)
100% No Trip
200% 10 - 40
300% 3.0 - 8.0
400% 2.0 - 9.0
500% 1.0 - 6.0
600% 0.6 - 5.0
1000% 0.2 - 2.5

Pacer Panel mount thermal breakers type 2-5700 are designed to protect against overcurrent. They do this even in the toughest marine environments the sea has to offer. These single-pole, high-quality breakers are ideal for use in marine applications, household appliances, and transportation. They are even utilized in power supplies, commercial appliances, and more. These breakers are known for their durability and longevity, making them the perfect choice for marine applications. Choosing the correct breaker is not a simple choice. Contact a Pacer expert with any questions that you may have.

Applications:

  • Household/commercial appliances
  • Transportation
  • Marine
  • Telecommunications
  • Power Supplies

Compliances:

  • CSA
  • UL 1077
  • VDE

Features:

  • Single-pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap-action mechanism
  • Push-push switch/circuit mechanism
  • Threadneck panel mounting
  • Approved to CBE standard EN 60934 (IEC 60934)
