Non-Insulated Grounding Bar, 100 Amp

Product Description

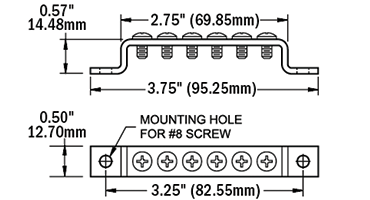

The 100A continuous rating at up to 48 VDC makes it suited for lower-voltage DC systems (battery systems, solar panels, backup power, marine battery banks, etc.) rather than high-voltage AC mains. The 3.75" length is fairly compact. So it's useful where space is limited. The 6 screws give flexibility, as multiple grounding wires or straps can be terminated there. The screw connections can take either ring or fork terminals.

This bus bar is made from tin-plated copper, which is a good choice for corrosion resistance, as tin helps prevent copper oxidation. This is essential protection for marine or moist environments. It's conductive and durable, and the tin plating helps protect the copper surface. Because it's non-insulated, it is important to mount this bus bar safely. Avoid contact with other conductive surfaces and ensure it is only used where exposed grounding bars are acceptable/allowed under codes where you are working.
