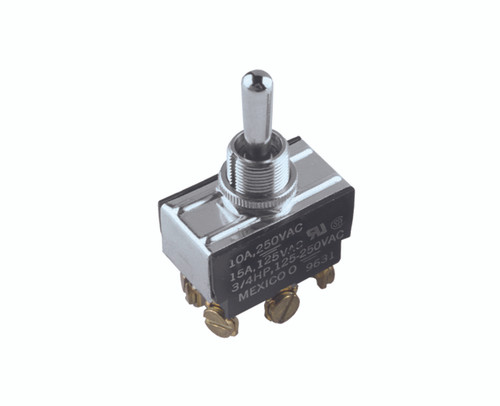

Metal Bat Toggle Switch, Double Pole, Momentary

Metal Bat Toggle Switch, Double Pole, Momentary

$18.000 - $42.000
SKU:
ES-B6G
Grand Total:
18
Add to Custom Catalog

Related Products

Product Description


Switch Function  Description Momentary
(ON) - OFF Double Pole, Single Throw Yes (ON)
ON - (OFF) Double Pole, Single Throw Yes (OFF)
ON - (ON) Double Pole, Double Throw Yes (ON)
(ON) - OFF - (ON) Double Pole, Double Throw (Center Off) Yes (ON)
ON - OFF - (ON) Double Pole, Double Throw (Center Off) Yes (ON)
(ON) - ON - OFF Double Pole, Double Throw  Yes (ON)

A Bat toggle switch is an electrical switch that is named for its extra-long bat-shaped actuation handle. This handle is designed for easy activation. Most often, these switches are covered with a protective boot for extra protection. Commonly, bat toggle switches are built to be used in low-voltage, high amp applications. These applications include multiple activities as marine and off-road usage. This is one reason that they are so popular. Bat toggle switches are the ideal choice when you need a simple power switch on your boat or vessel. Bat toggle switches are also available in more complex options in order to handle a variety of potential applications that you may encounter. All the bat toggle switches that Pacer carries are rated at 15A/120VAC. Choosing the proper bat toggle switch for your application is not an easy task. Contact a Pacer expert today with any questions that you may have.

Applications:

  • Suitable for both AC and low-voltage DC applications
  • Commonly used in Marine, Food Service, Generator, Industrial Controls, and Automation markets

Characteristics:

  • Base Material: Phenolic
  • Actuator (Bat): Brass/Nickel Plated
  • Bushing: Brass/Nickel Plated
  • Screw Terminal: #6-32NC2
  • Dielectric Strength:  1000V RMS (Min.)
  • Insulation Resistance: 100 Mega Ohm
  • Bushing Length: 0.465"
  • Panel Mounting Hole: 1/2" Diameter

Compliances:

  • UL
  • CSA

 Ratings:

  • 15 Amp 125-VAC
  • 10 Amp 250-VAC, 3/4"
  • HP 125-250-VAC

Features:

  • Durable brass/nickel plated metal bat toggle switch
  • Nickel plated hardware
  • Screw Terminal connection
  • Single and double pole
  • Mounting Hole .50"
