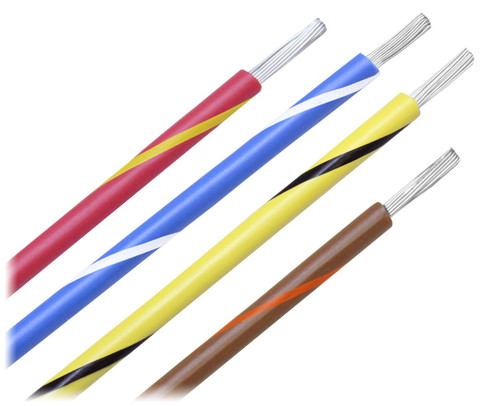

Striped Marine Primary Wire 16

16 Gauge Striped Marine Wire 500' Spool

$117.500 - $148.500
Minimum Purchase:
1 unit
Selected Select Color is
Selected Select Stripe Color is
Custom Product: This product is made to order, and cannot be returned or refunded. Due to increased demand, please allow extra time for processing.
Grand Total:
117.5
Adding to cart… The item has been added
Add to Custom Catalog

Related Products

Product Description

Striped wire spec sheet



AWG 16
Cond. Stranding 26/.0100
Nom. Ins. Thickness 0.032
Nom. O.D. 0.125
Nom. Circular Mils 2600
Apprx LB/M 14.8

Striped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota FL, USA from Type III Class K tinned copper.

During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.

How many options of 16 AWG striped marine wire does Pacer offer? The most important thing when selecting the proper striped wire is choice. By offering an enormous section, you can be assured you will find the combination you are looking for. Currently, there are over 100 possible combinations of 16 AWG striped marine wire. Have a question about striped marine wire? Contact a Pacer expert today.

Applications:

  • Point to point wiring
  • Internal wiring of panels and motors

Characteristics:

  • Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
  • Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
  • Voltage Rating: 600V or 1000V

Compliances:

  • UL Standard 1426 (BC-5W2)
  • UL: AWM 1015/1230
  • ABYC: E-11.15
  • Coast Guard: 33 CFR part183.401 Subpart 1

Features:

  • Stranded, Tinned copper conductors
  • Highly flexible color-coded insulation
  • Annealed Finely Stranded Tinned Copper ASTM b172 Class K
  • Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Print:

  • PACER   E157097 (UL) 16 AWG  BC-5W2 105⁰C DRY 75⁰ WET  OR  (RU) AWM 1015/1230/1335 600V  OR 10269 1000V VW-1  OIL RESISTANT I  OR  c(RU) AWM I A/B 105⁰C 600V FT1

!
