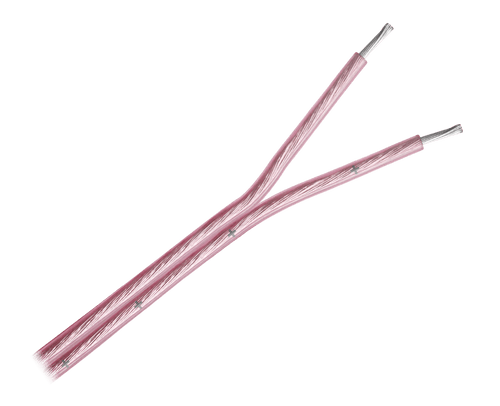

16 Gauge Speaker Wire

$0.300
SKU:
W16-2ACLR
Minimum Purchase: 25 Feet
Note: Reel Size Max 1000 feet
Grand Total:
0.3

Frequently Bought Together

Please choose Options for all selected Products

Product Description


Wire Specifications See Table
AWG 16
Conductor Stranding 26/0.0100
Nom. O.D. 0.112 x 0.210
Approx LB/M 25

Compliances:

  • RoHS Compliant Directive 2002/95/EC

Characteristics:

  • Conductor: Fully annealed stranded one bare, one tinned copper per ASTM B-174
  • Insulation: Clear PVC
  • Temperature Range: -20 °C to 80 °C
  • Voltage Rating: 90V

NOTE: This wire carries a 25 foot Minimum and 1000 foot Maximum per order. For details or specialized orders, please call 941.378.5774

Speaker wire is often used with home theaters, digital audio and stereo speakers. Speaker wire is not rated for in-wall usage. How is it manufactured? Speaker wire is made from two different conductors. Both of these conductors are made from finely stranded copper, while only one of them is tinned. The other conductor is bare copper. They are made this way for several reasons. The most important reason is to distinguish polarity. Both conductors are also insulated with a translucent PVC jacket. This insulation is designed to be flexible which makes installation easy.

How do you use speaker wire? You start by choosing the proper gauge. This can be determined by figuring how long the wire will need to be. It's a good idea to always add a few extra feet to leave room for error. This also keeps the run from becoming too tight. Once you know the length of the wire, you will need to consider the power requirements. After you know the length of your run and the power requirements, you can select the proper gauge wire for your job. If you would like help selecting the proper speaker wire, contact a Pacer Group expert today.

Features:

  • Highly flexible Clear Insulation

Applications:

  • Digital Audio, Stereo Speakers, and Home Theaters
  • NOTE:  Not Rated for In-Wall Use
