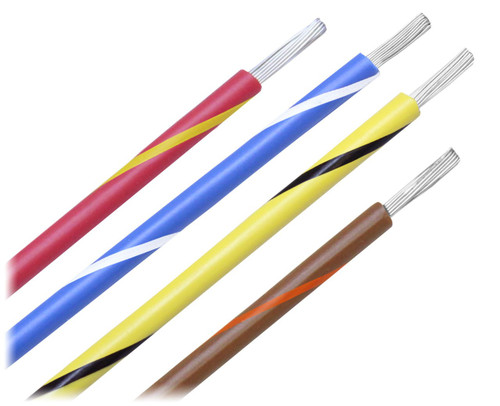

Striped Marine Primary Wire 14

14 Gauge Striped Marine Wire 500' Spool

$160.000 - $208.000
Minimum Purchase:
1 unit
Selected Select Color is
Selected Select Stripe Color is
Custom Product: This product is made to order, and cannot be returned or refunded. Due to increased demand, please allow extra time for processing.
Grand Total:
160
Adding to cart… The item has been added
Add to Custom Catalog

Related Products

Product Description

Striped wire spec sheet



AWG 14
Cond. Stranding 41/.0100
Nom. Ins. Thickness 0.032
Nom. O.D. 0.145
Nom. Circular Mils 4100
Apprx LB/M 22.0

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier which increases job efficiency. All of Pacer's primary wire is constructed in Sarasota FL, USA from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible.

All of Pacer's primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer? Choice is everything and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire? Contact a Pacer expert today.



Applications:

  • Point to point wiring
  • Internal wiring of panels and motors

Characteristics:

  • Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
  • Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
  • Voltage Rating: 600V or 1000V

Compliances:

  • UL Standard 1426 (BC-5W2)
  • UL: AWM 1015/1230
  • ABYC: E-11.15
  • Coast Guard: 33 CFR part183.401 Subpart 1

Features:

  • Stranded, Tinned copper conductors
  • Highly flexible color-coded insulation
  • Annealed Finely Stranded Tinned Copper ASTM b172 Class K
  • Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Print:

  • PACER   E157097 (UL) 14 AWG  BC-5W2 105⁰C DRY 75⁰ WET  OR  (RU) AWM 1015/1230/1335 600V  OR 10269 1000V VW-1  OIL RESISTANT I  OR  c(RU) AWM I A/B 105⁰C 600V FT1

!
