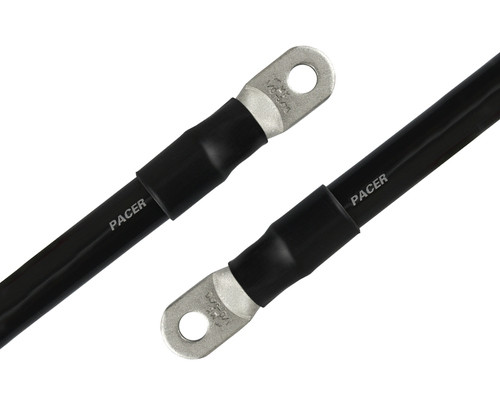

1 AWG, Battery Cable Assemblies, Black

$9.920 - $49.750
SKU:
B1B
Custom Product: This product is made to order, and cannot be returned or refunded. Please allow extra time for processing.
Grand Total:
9.92

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

Product Description

*This Page was Updated on 11/10/2021.




AWG 1
Cond. Stranding 19x44/0.0100
Nom. Ins. Thickness 0.080
Nom. O.D. 0.550
Nom. Circular Mils 83600
Nom. MM2 42.4

Compliances:

CABLES:

  • UL Standard 1426 BC-5W2
  • AWM 1232/1284
  • MTW, CSA: TEW
  • ABYC: E-11.16
  • Coast Guard: 33 CFR part 183 Subpart 1

CRIMPS:

  • Exceed UL 486 and MIL-T-7928



Characteristics:

  • Conductor: Annealed fine stranded tinned copper ASTM B172 Class K
  • Insulation: -20 °C to 105 °C Flexible color coded PVC
  • Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
  • Voltage Rating: 600-V
  • Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Pacer's custom 1 AWG Black Battery Cable Assemblies are always manufactured to order in Sarasota, FL USA. They are built using Pacer's own UL approved marine cable. How are they manufactured? It begins using a precision cut and strip machine. This machine is used for repeatable and accurate cuts. Once the cable has been cut to the proper length, terminals are added to each end. Pacer uses a hydraulic-pneumatic crimper that creates a gas-tight crimp. When the terminals are properly crimped, epoxy heat shrink is then added to the assembly. The heat shrink is used to create a barrier which in turn makes a moisture and airtight connection. The process is used to create superior 1 AWG black battery cable assemblies. These assemblies are built so well that they are likely to outlive the battery itself. Pacer refined this process with the boater in mind. These 1 AWG black battery cable assemblies are easy to bend and route and are made to offer excellent durability and flexibility. They are built to withstand the harshest marine conditions. They are resistant to Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture. Contact a Pacer expert today with any questions that you may have.



Features:

  • Pacer UL Approved Battery Cable (Type III Stranded Tinned Copper)
  • Epoxy Lined Heat Shrink
  • Custom Lengths and Configurations Available
  • Easy to bend and route
  • Excellent flexibility with the durable properties of PVC

Print:

  • PACER E157097 (UL)1AWG 600V BC-5W2 105°C DRY, 75° WET OR MTW OR AWM 1232/1284 VW-1 OIL RESISTANT 1 LL102583 CSA TEW 105°C FT1
