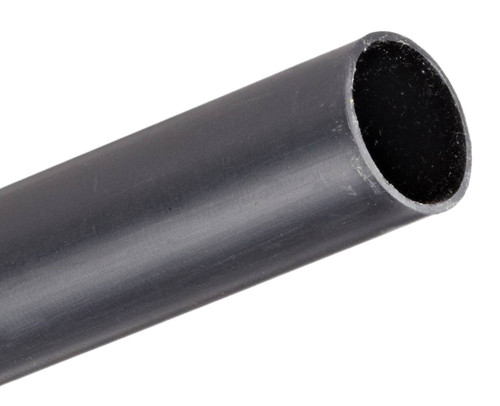

Heavy Wall Adhesive Heat Shrink, 1' Lengths
$7.000 - $9.200
- SKU:
- BHW
Related Products
Product Description
| Part Number | Expanded I.D. | Recovered I.D. | Wire Range | Recovered Wall Thickness |
| BHW3/4BK | 0.750" | 0.220" | 6 - 2 | 0.09" |
| BHW3/4RD | 0.750" | 0.220" | 6 - 2 | 0.09" |
| BHW1.1BK | 1.100" | 0.350" | 1 - 3/0 | 0.12" |
| BHW1.1RD | 1.100" | 0.350" | 1 - 3/0 | 0.12" |
BHW is coated internally with a dual-purpose thermoplastic liner that flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.
Insulation varies with different types of wires; different diameters or tubing may actually be required. When choosing a size, consider any components or connectors that may need to be covered.
Applications:
- Splice sealing
- Primary insulation
- Cable/jacket repair
- Direct burial/submersible
- Strain relief
Compliances:
- MIL-I-23053/15 Class 1
Features:
- Highly abrasion and impact resistant
- Easy installation, shrinks when heated over 120 °C
- Thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel and aluminum
- A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermo-plastic adhesive provides superior environmental protection.
- Any connection in harsh conditions
- Adhesive-lining provides a barrier against contaminants
- Excellent resistance to acids and alkalis
- Good resistance to fuel, oil and solvents
