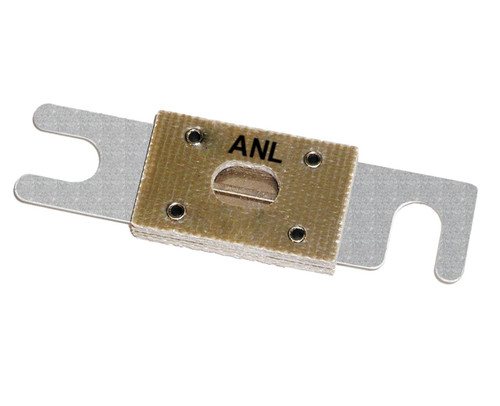

ANL Fuses
$44.000 - $80.000
- SKU:
- EANL
Related Products
Product Description
| Series | ANL |
| Voltage | 80 Volts DC (or less) |
| Interrupting Rating | 2,700 Amps DC |
| Amp Load Options | 35-600 |
| Blade Material | Silver-Plated |
Compliances:
- SAE J1171 (35-500 Amps): Ignition Protected
Features:
- Use with ANL Fuse Blocks for many applications with 35-600 Amp Loads
- Interrupting Rating: 2,700 Amps DC, 6,000 Amp AC
- Voltage: 80 Volts DC (or less), 32V AC
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown fuse condition
- Isolates faults in equipment systems such as lift trucks and other battery operated system
