8 Gauge Primary Wire

8 Gauge Marine Wire

$1.026 - $834.000
SKU:
WUL8
Minimum Purchase: 10
feet
Grand Total:
1.026
Add to Custom Catalog

Related Products

Product Description

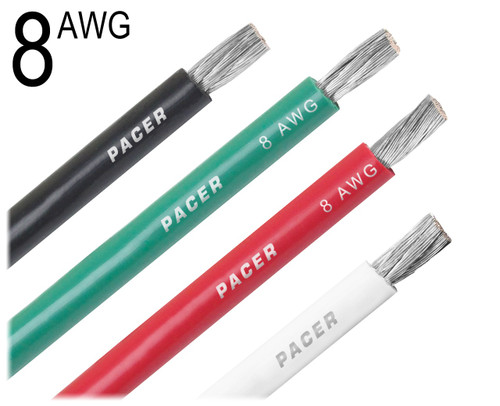

8 AWG UL Primary Wire

AWG 8
Conductor Stranding      168/0.0100
Nom. Insulation 0.045
Nom. O.D. 0.265
Nom. Circular Mils 16800
Approximate LB/M 80.0



Pacer's 8 AWG UL marine wire is designed to handle the harshest marine environments. It is built to meet and exceed the most stringent specifications. This 8 AWG marine wire is manufactured in-house in Sarasota FL, USA to ensure the absolute highest level of quality. This wire is constructed from Type III class K tinned copper. It is designed to offer excellent flexibility and durability. The copper conductors are tinned to resist corrosion. This process adds to the life of the wire.

What type of insulation is used during the manufacturing process? Well, once the copper is tinned, the next part of the process insulates the wire. This insulation adds a PVC jacket that is flexible and durable. It is designed to protect the wire and make it resistant to a variety of hazards. Some of the hazards are; alkali, abrasion, acid, gas, oil, flame, and moisture. What standards and compliances does Pacer's wire meet? This marine wire exceeds the standards and requirements of ABYC, NMMA, and UL.



Applications:

  • Point to point wiring
  • Internal wiring of panels and motors

Characteristics:

  • Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K
  • Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
  • Voltage Rating: 600-V
  • Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Compliances:

  • UL Standard 1426 BC-5W2
  • UL: AWM 1028/1231
  • ABYC: E-11.15
  • UL: MTW
  • Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems
  • Temperature Rating: 105 °C Dry, 75 °C Wet

Features:

  • Stranded, tinned copper conductors
  • Highly flexible color-coded insulation

Print:

  • (For 18-8 AWG) PACER E157097 (UL)_AWG 600V BC-5W2 105°C DRY, 75° WET OR MTW OR AWM 1015/1230 (1028/1231 -8AWG ONLY) VW-1 OIL RESISTANT I
