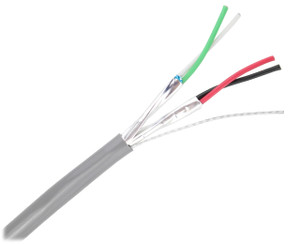

Multi-Pair Overall Shield

$1.440
SKU:
M22/2PRF
Minimum Purchase:
25 units
Grand Total:
36
Add to Custom Catalog

Related Products

Product Description



Number of Pairs 2
Conductor Stranding 7/.0096
Nom. Cap pF/ft*  (A) 32.0
Nom. Cap pF/ft*  (B) 57.0
Nom. Insulation Thickness 0.015
Nom. Jacket Thickness 0.042
Nom. O.D. 0.294

*Nom. Capacitance: A-Between conductors      B-Between conductors and shield


Multi-pair overall shielded cables are found in a wide variety of industrial and commercial uses. Some of these uses include industrial equipment control circuits as well as remote control circuits. These cables are also used in Point-of-Sale (POS) equipment and in control circuits where total signal isolation is required. The wire pairs are surrounded together by an aluminum foil shield for protection. The shielding is then encased in a durable yet flexible PVC jacket. These cables offer excellent high-frequency properties as well as mechanical durability. So, why use an overall shield? The wires are shielded in order to reduce interference that could interrupt the signal causing an interruption. It serves to block the electromagnetic interference from entering or exiting the cable. Selecting the correct type of multi-pair cable can be somewhat confusing. Contact a Pacer expert today with any questions that you have.

Features:

  • Finely Stranded, Tinned copper conductors
  • 100% Aluminum polyester foil with a stranded tinned copper drain wire with cables that have individually shielded pairs
  • Color coded PVC Insulation
  • Grey PVC jacket

Compliances:

  • NEC Art. 800 Type CM (UL 105°C, 300V)
  • UL Style 2464
  • CSA CMG

Characteristics:

  • Voltage Rating: 300-V
  • Temperature Rating: -20°C to 80°C

Applications:

  • Computers
  • Data Transmission
  • Industrial Equipment
  • Control Circuits
