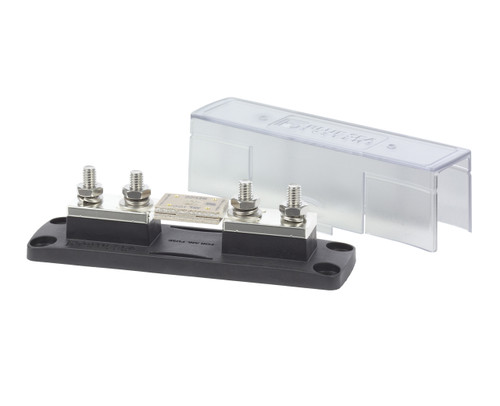

Fuse Block with Cover, Heavy Duty, Rated 35 - 750 AMP
$68.100
- SKU:
- EFB-ANLHD
Related Products
Product Description
| Max Voltage | 32V DC |
| Base Material | Reinforced Polycarbonate |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 4/0 AWG |
| Maximum Torque | 107 in-lb (12.09 Nm) |
| Terminal Stud Size | 5/16" - 18 (M8) |
Pacer's 35-750 amperage fuse block is built with the boater in mind. Made to be easy to install, this fuse block is known throughout the marine industry as a high-quality option when considering circuit protection. This fuse block also includes a cover to increase its safety. Since we are talking about safety, it is worth noting that this fuse blocks cover meets the insulating requirements of the ABYC and USCG. One great feature about this product is that it has a swing out function so that you do not need to remove fasteners to replace a fuse.
Characteristics:
- Accepts ring terminals sized 5/16" (M8)
- Rated for 35-750 Amps, and is designed for use on systems up to 32 volts DC
- The swing-out design is meant to allow for replacement of the fuse without having to remove fasteners
- Stainless steel studs are added to provide resistance to corrosion as well as high torqueing which creates excellent electrical contact
- UL-94-V0 base is resistant to high levels of heat
- Insert molded studs are built to ensure secure fuse mounting every time
- The insulating cover is made to satisfy ABYC/USCG requirements
- The insulating cover is included
- Cover breakouts are meant to allow wiring access regardless of the direction
