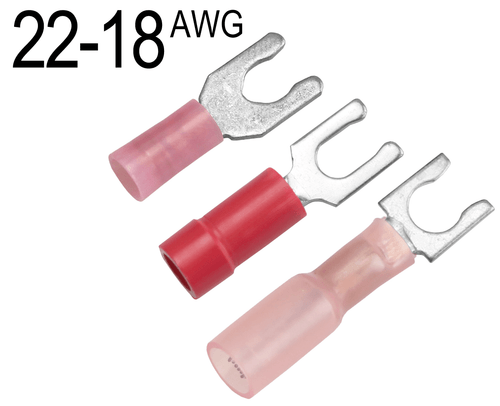

Fork Terminals for 22 AWG - 18 AWG Wire

$2.700 - $280.250
SKU:
T18-SLF
Grand Total:
2.7
Add to Custom Catalog

Related Products

Product Description


Non-Insulated Dimensions
Stud Size A B C D
22AWG - 18AWG
#6 0.68"  0.27"  0.22"  0.48"
#8 0.74"  0.29"  0.23"  0.53"
#10 0.74"  0.33"  0.23"  0.53"
Size Explanation See Table
Terminal Type Fork
Wire Gauge 22-18 AWG
Insulation Types Non-Insulated, Nylon, Vinyl, Heat Shrink
Insulation Color Red
Base Material Tinned Copper




Red fork terminals are for 22-18 AWG wire and come in a variety of insulation materials.  Non-insulated terminals are considered the most economical. They are commonly used where special performance or installation characteristics are not needed. Nylon terminals offer rugged construction and high performance. Nylon insulated fork terminals also protect against stress and high vibration. Vinyl terminals are perfect for use where an insulated barrel is necessary. Vinyl terminals have an insulation sleeve of color-coded PVC. A sleeve that is permanently tapered to the barrel. Heat shrink fork terminals protect against the elements in the harsh environment. They are known for offering the best moisture protection available. The heat shrink terminals possess a heat activated adhesive liner. This liner provides a durable, environmentally sealed connection for wires between 22 AWG - 18 AWG.

Features:

  • Available in nylon, vinyl, non-insulated or heat shrink
  • Tin-plated ETP copper for corrosion resistance (nylon, vinyl, and non-insulated only)

Features: (Heat Shrink Only)

  • Protects terminations from water, condensation, salt spray and corrosion
  • Provides strain relief

Compliances:

  • UL
  • CSA
  • RoHS

Characteristics:

  • Base material: C11000 ETP copper (nylon, vinyl, and non-insulated only)
  • Plating: Electrodeposited tin
  • Plating: Tinned Copper (non-insulated only)

Characteristics: (Heat Shrink Only)

  • Shrink Ratio: Approx. 3:1
  • Operating Temp: -55 °C - 110 °C
  • Dielectric Strength: 900-V/mil
  • Voltage Rating: 600-V
